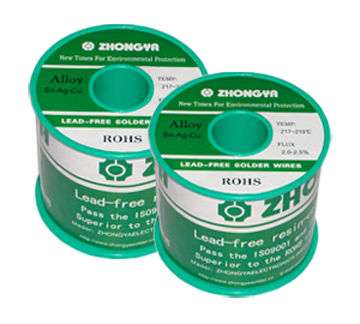

Lead-free solder wires

3-6、Guidance for the selection of solder wires

3-6-1 Sn-Cu Alloys

Series Composition Melting Point/Solidus With Flux core No Flux core Recommendation
WH-10 S-Sn99.90 232 232 ● ●
WH-22 S-Sn99.7Cu0.3 227 227 ● ●
WH-23 S-Sn99.3Cu0.7 227 227 ● ● Used widly
WH-24 S-Sn99Cu1 227 240 ● ●
WH-25 S-Sn97Cu3 227 275 ● ●
WH-323 S-Sn99Cu0.6Ni0.4 226 226 — ●
WH-335 S-Sn96.75Cu3Ni0.25 — ● ●

3-6-2 Sn-Ag Alloys

Series Composition Melting point/Solidus With flux core No flux core Recommendation
WH-26 S-Sn97Ag3 221 200 ● ●
WH-27 S-Sn96.5Ag3.5 221 221 ● ●

3-6-3 Sn-Ag-Cu Alloys

Series Composition Melting point/Solidus with flux core No flux core Recommendation
WH-316 S-Sn97Ag1Cu2 — ● ●
WH-326 S-Sn96.5Ag3Cu0.5Ce 217 219 ● ● For the slap-up products
WH-327 S-Sn95.5Ag3.5Cu1 218 218 ● ●
WH-373 S-Sn99Cu0.7Ag0.3 218 218 ● ● For general products
WH-402 S-Sn96.5Ag2Cu1Sb0.5 216 222   ●

3-6-4 Sn-Bi-X Alloys

Series Composition Melting point/Solidus with flux core No flux core Recommendation
WH-330 S-Sn93Ag4Bi3 219 221 ● ●
WH-138 S- Bi58Sn42 138 138 — ●

3-6-5 Sn-Sb Alloys(Eutectic)

Series Composition MeltingPoint(℃) With flux cor No flux core Bar Recommendation
WH-210 S-Sn95Sb5 234-240 — ● ●

Notice:“●” in the table represents this kind of product is supplied,“-” represents no products
